As a precision sheet metal facility MASAR offers production, low cost technologies. MASAR success the latest in high tech equipment,
operations are being under run by experienced Well trained employees
at every level. We are electronically linked with our customers from
the engineering stage to the final quality inspections prior to shipment,
MASAR is as committed to Manufacture what you design and \ or
select. Thus, our business is to fulfill your designated need. Give
us a call and let us go to work for you.

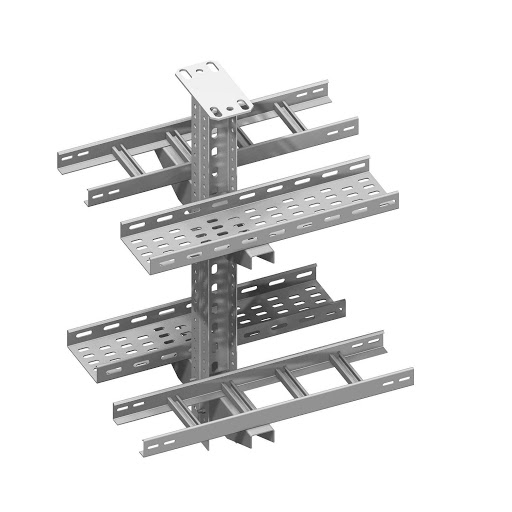

The need for a Cable Management System
As technology develops, in accordance to that the need for effective support systems arises.
Today plants and buildings are moving more and more towards automation requiring complex system of wiring and cable reliance
Old methods of Cable Management become obsolete & out dated under these demanding conditions:
- Regular inspections must be carried out for errors allocation
- Many entry / exit points are required
- New cable may need to be installed, and old ones previously installed
- Ventilation, essential to power and similar cables has to be present as well
Today Cable Management System have become a necessary part of industrial and commercial construction.
Cable trays are capable of supporting all types of wiring:
- High voltage power lines
- Power distributions cables
- Telecommunications wiring
- Optical cables
Advantages of Masar Cable Management System
Maser cable tray system offer the following Advantages:
- Easy installations
- Increased cable fill over other wiring method
- Saving material costs and installation labor
- The metal can be used as an equipment ground conductor
- Less space utilization than other systems
- Easy inspection of cables
- Easy errors allocation & quick repair, without any replacements of cables
- Cables can instantly be added to existing trays at a later stage
Standards
NEMA Standards Publication VE 1 – 2009
Canadian Standards Association Publication CSA C22.2 No.126.1-09
Metal Cable Tray Systems
NEMA Standards Publication VE 2-2013
Cable Tray installation Guidelines
Masar manufactures Four types of cable Management system:

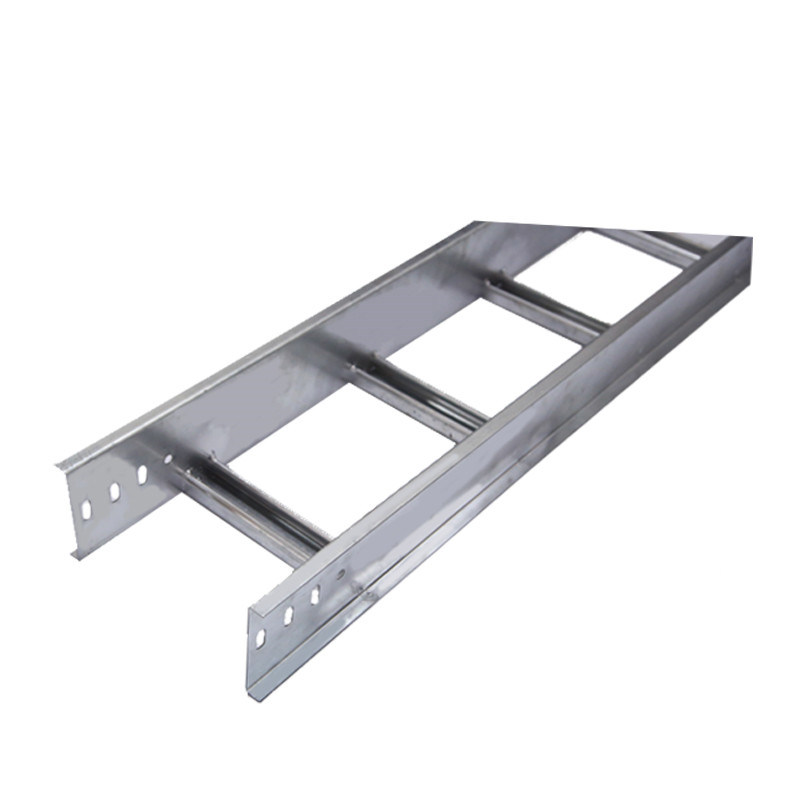

- Ladder type

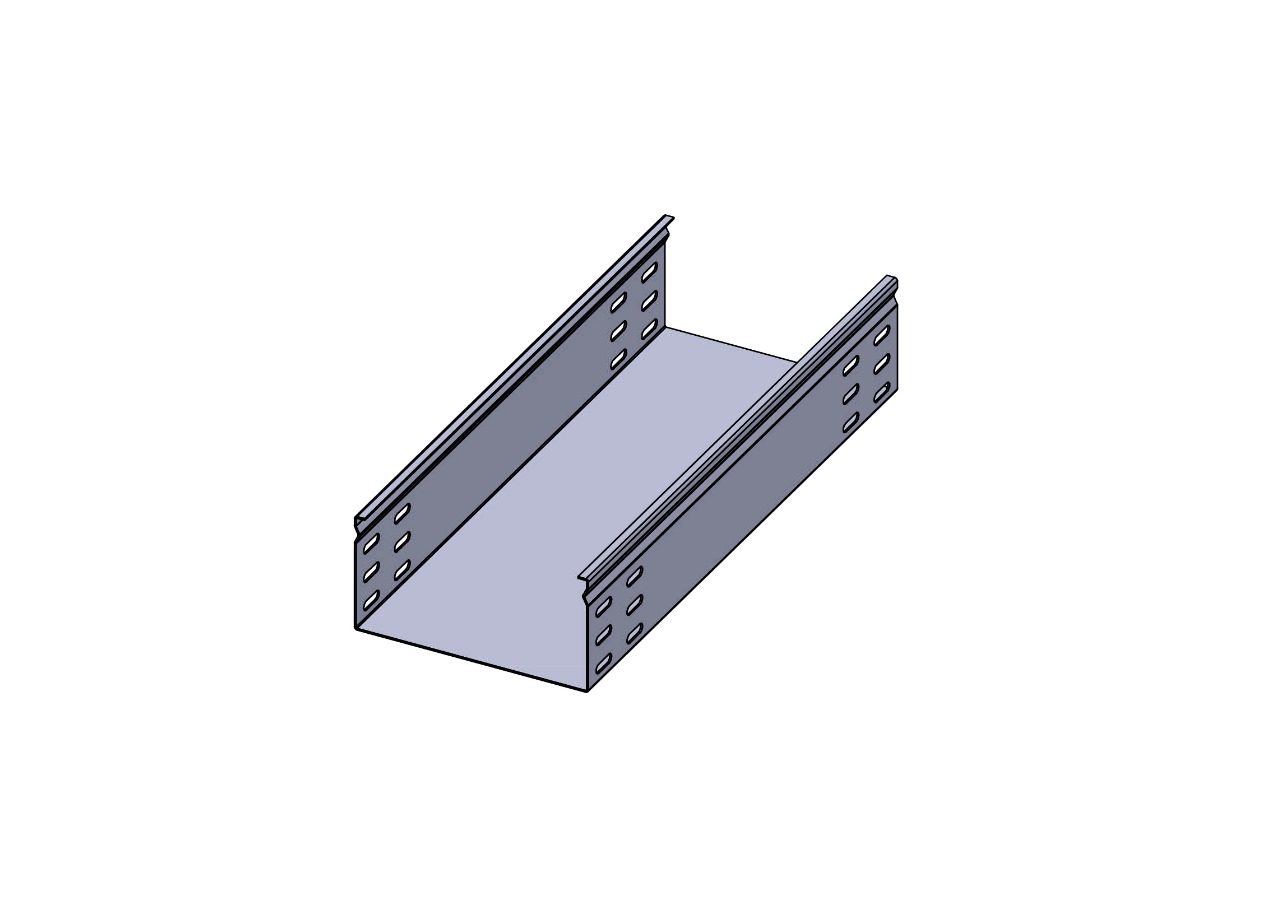

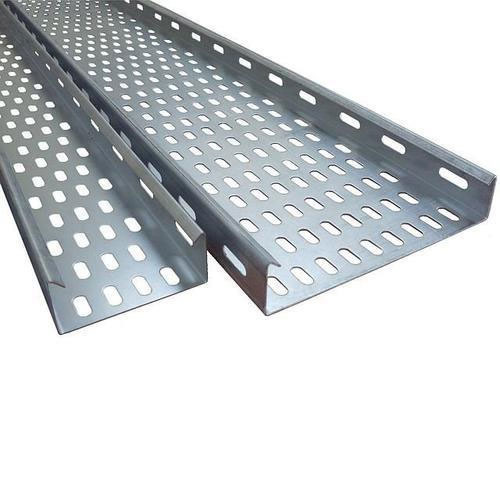

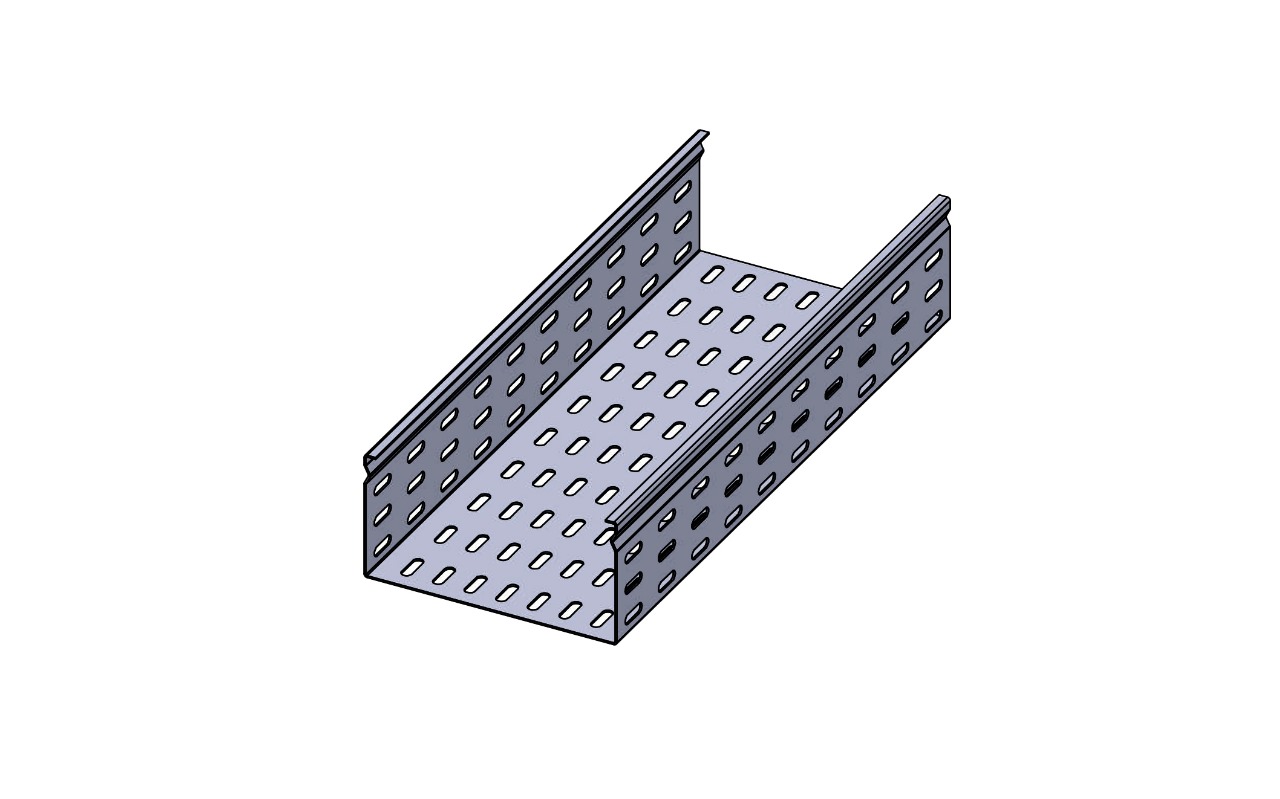

- Perforated type

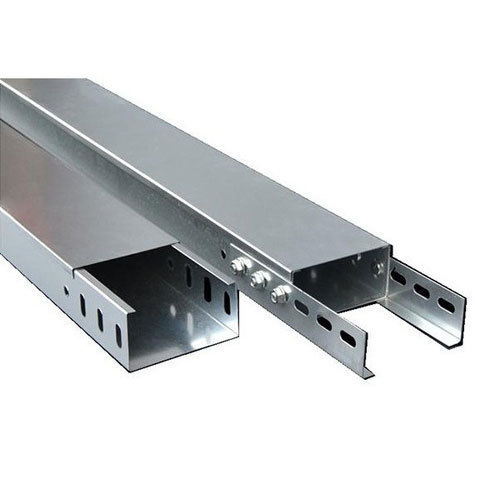

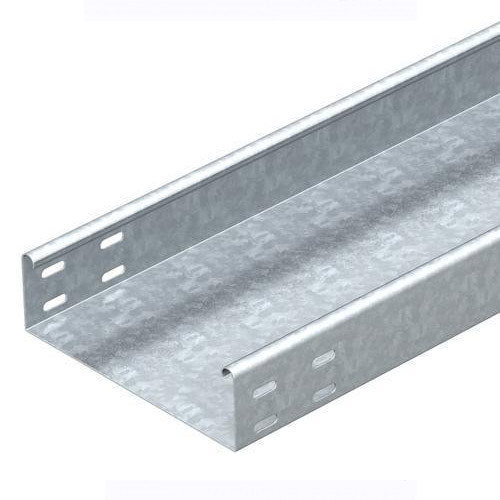

- Solid type

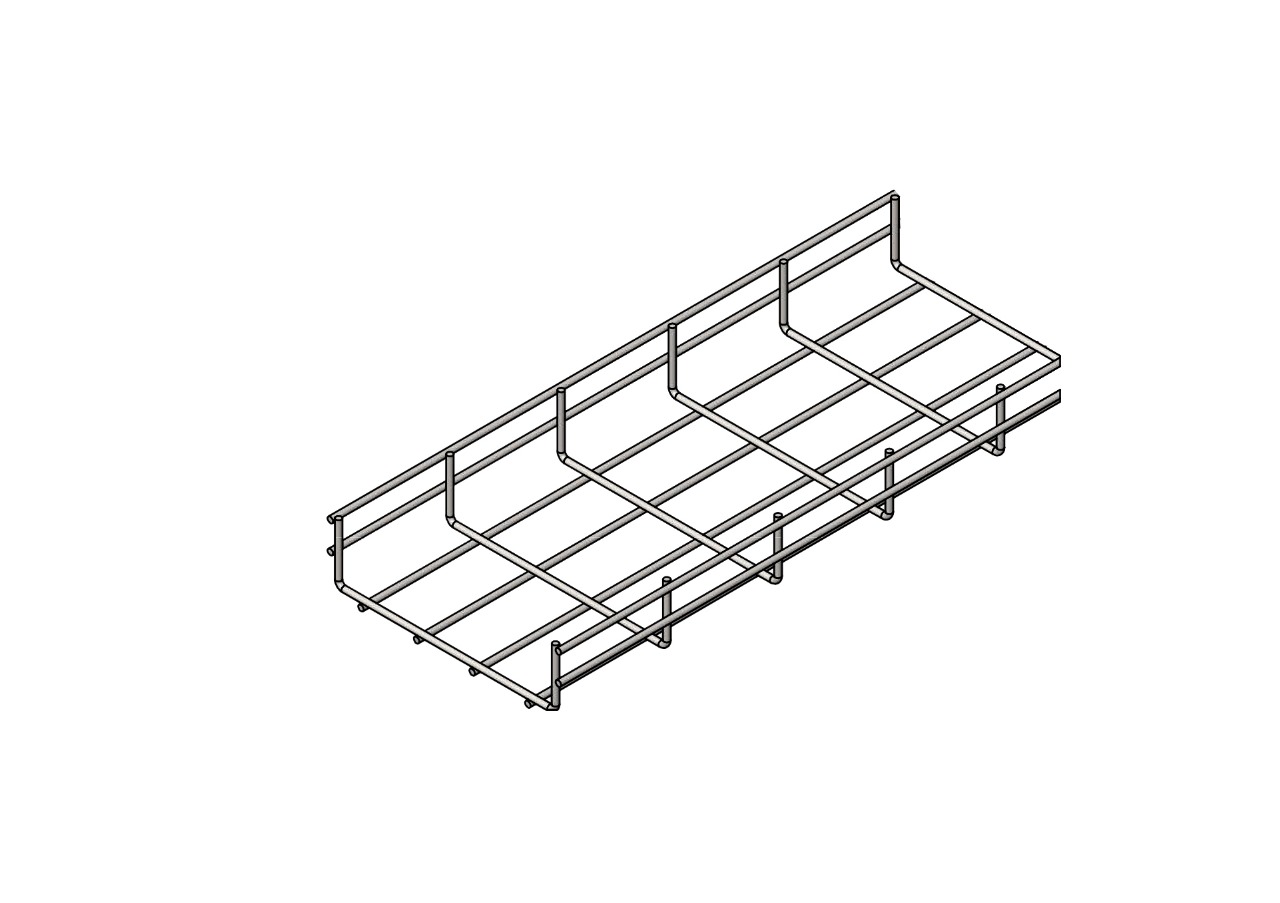

- wire mesh
All of these are available with a full range of fixtures and accessories
System component used to join, change direction, change dimension or terminate cable tray lengths or cable ladder lengths
All of these are available with a full range of fixtures and accessories
Fixtures:
System component used to join, change direction, change dimension or terminate cable tray lengths or cable ladder lengths.
All of these are available with a full range of fixtures and accessories
Covers:
Covers act as an additional safeguard, providing shelter from sunlight dirt accumulation and accidental contact. They also isolate cables from fires and radio frequency interference
Available in solid top or louvered top
Construction Accessories:
Other types of cable trays and fixtures can be supplied to meet specific requirements.
Maser cable trays are available in these materials Aluminum, steel and stainless steel
Listed below the advantages of each material type.
| Material |
Advantage |
| Aluminum |
- Corrosion resistance
- Easy field Fabrication & installation
- Excellent strength to weight ratio
- Excellent grounding conductor
|
| Steel |
Electric shielding
- Finish options
- Low thermal expansion
- Limited deflection
|
| Stainless Steel |
Superior corrosion resistance with stands high temperatures
|
Materials and Finishes for steel
All Masar cable management are manufactured from prime quality sheet.
of protection are offered:
- Electrostatic after manufacturing
- Fabricated from pre-galvanized sheets
- Hot dip galvanized after manufacturing
-

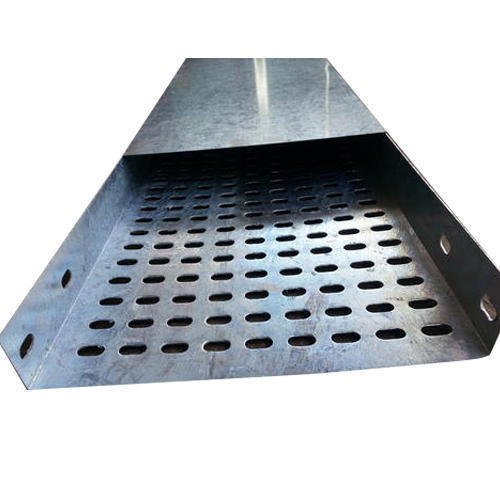

Oval holes with optimum sizes supply maximum air ventilation without reducing the required amount of supporting strengh.
They are available with a full range of fixtures and accessories
System component used to join, change direction, change dimension or terminate cable tray lengths or cable ladder lengths.
All of these are available with a full range of fixtures and accessories
Fixtures:
System component used to join, change direction, change dimension or terminate cable tray lengths or cable ladder lengths.
All of these are available with a full range of fixtures and accessories
Covers :
Covers act as an additional safeguard, providing shelter from sunlight dirt accumulation and accidental contact. They also isolate cables from fires and radio frequency interference.
Available in solid top or louvered top
Construction Accessories:
Other types of cable trays and fixtures can be supplied to meet specific requirements.
Masar cable trays are available in these materials Aluminum, steel and stainless steel
The following items provide the typical dimensions used in the industry.
Other dimensions shall also be acceptable.
Dimensions are based on rationalized conversions.
Lengths of Straight Sections
Typical lengths, not including connectors, are :
(a) 3 m + 5 mm ( 10 ft + 16/3in )
(b) 3.66 m + 5mm (12 ft + 16/3 in.)
(c) 6 m + 9mm (20 ft + 16/5 in.)
Widths
Typical widths are:
(a) 150 mm (6 in.);
(b) 225 mm (9 in );
(c) 300 mm (12 in. );
(d) 450 mm (18 in. ) ;
(e) 600 mm (24 in. );
(f) 750 mm (30 in. );
(g) 900 mm (36 in. );
Note
The tolerance of the widths is within + 6 mm (4/1 in.) for inside dimensions.
Overall width shall not exceed the inside width by more than 100 mm (4in.).
Typical depths for sections are :
(a) 75 mm (3 in.);
(b) 100 mm (4 in.);
(c) 125 mm (5 in.);
(d) 150 mm (6 in.);
Note
The tolerance of the depths is within + 10mm (8/3). Outside dep ths shall not exceed
inside depths by more than 30mm (114 – 1in.)
For cable trays, typical depths are 50-30 mm (2-4/1-1 in.) for outside dimensions.
Thickness
It starts from 0.7 up to 2 mm.
Flange type:
Masar Offers Different type of flanges:
- Snap on
- Angle flange
- Return Flange
-
Ideal solution for distribution of small amounts of telecommunication and electrical cables.
They are available with a full range of fixtures and accessories
System component used to join, change direction, change dimension or terminate cable tray lengths or cable ladder lengths.
All of these are available with a full range of fixtures and accessories
Fixtures
System component used to join, change direction, change dimension or terminate cable tray lengths or cable ladder lengths
Covers
Covers act as an additional safeguard, providing shelter from sunlight dirt accumulation and accidental contact. They also isolate cables from fires and radio frequency interference.
Available in solid top or louvered top
Construction Accessories:
Other types of cable trays and fixtures can be supplied to meet specific requirements.
Masar cable trays are available in these materials Aluminum, steel and stainless steel
Lengths of Straight Sections
Typical lengths, not including connectors, are :
(a) 3 m + 5 mm ( 10 ft + 16/3in )
(b) 3.66 m + 5mm (12 ft + 16/3 in.)
Widths
Typical widths are:
(a) 150 mm (6 in.);
(b) 225 mm (9 in );
(c) 300 mm (12 in. );
(d) 450 mm (18 in. ) ;
(e) 600 mm (24 in. );
(f) 750 mm (30 in. );
(g) 900 mm (36 in. );
Note
The tolerance of the widths is within + 6 mm (4/1 in.) for inside dimensions.
Overall width shall not exceed the inside width by more than 100 mm (4in.).
Typical depths for sections are :
(a) 75 mm (3 in.);
(b) 100 mm (4 in.);
(c) 125 mm (5 in.);
(d) 150 mm (6 in.);
Thickness
It starts from 0.7 mm up to 2 mm.
Flange type:
Masar Offers Different type of flanges:
- Snap on
- Angle flange
- Return Flange
Materials and Finishes
The very common type of material used for cable duct and truncking are manufactured from prime quality sheet.
To provide adequate protection against corrosion, three types of protection are offered:
- Electrostatic after manufacturing
- Fabricated from pre-galvanized sheets
- Hot dip galvanized after manufacturing
-

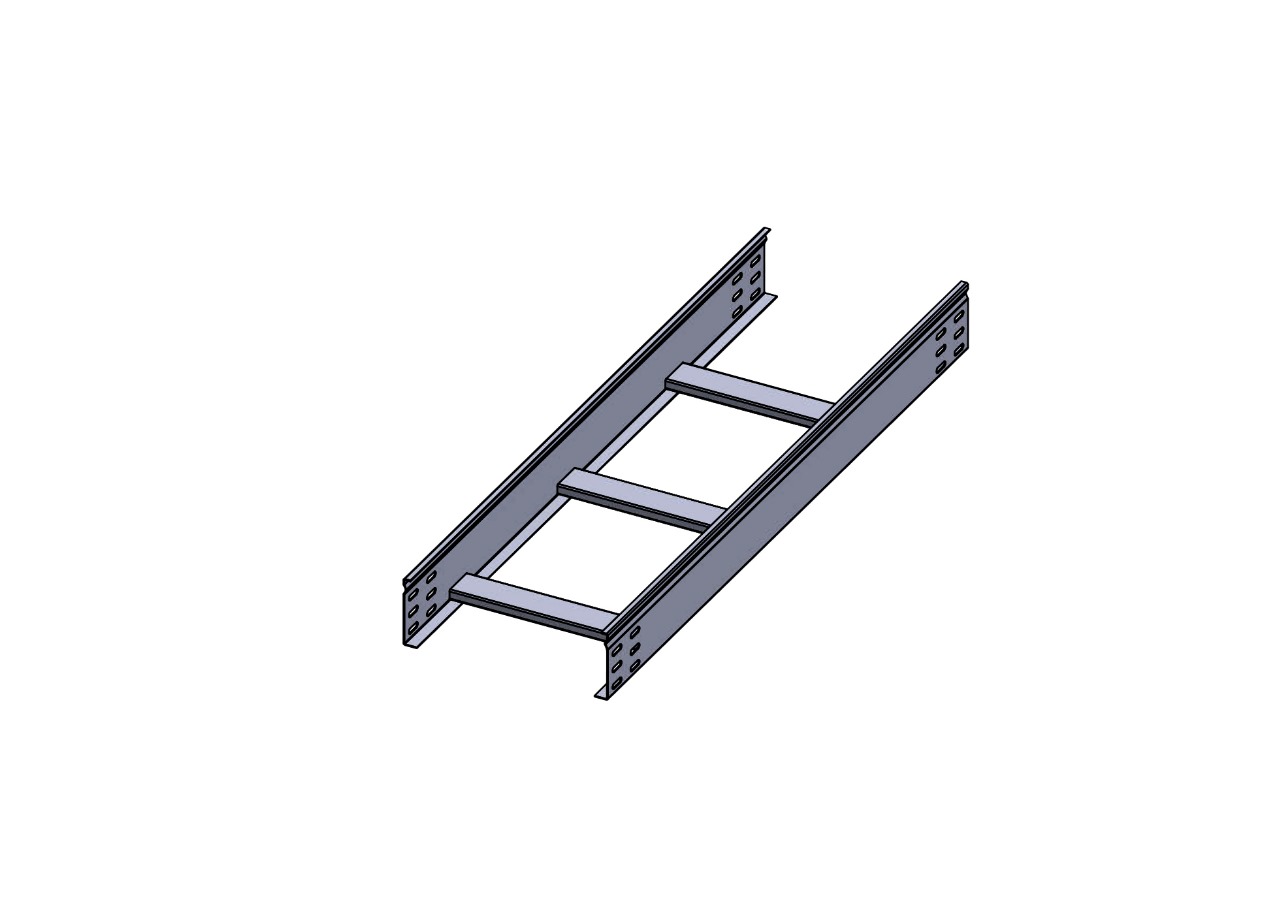

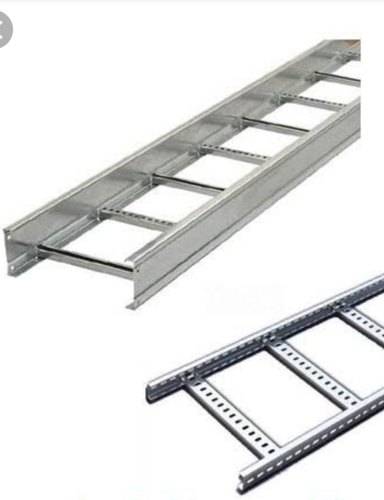

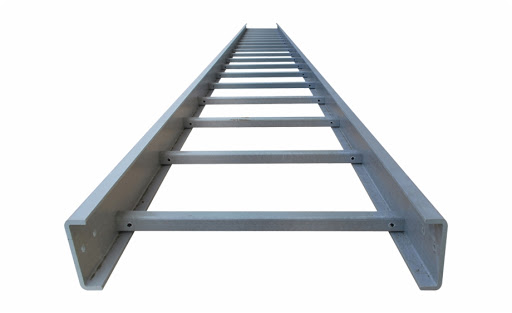

it is the most common type of the cable tray wiring system installation used generally in applications for a long support span such as commercial, power, oil and gas industries. This is because its amazing features. It used generally for supporting and protecting power and control cables.
They are available with a full range of fixtures and accessories
System component used to join, change direction, change dimension or terminate cable tray lengths or cable ladder lengths.
All of these are available with a full range of fixtures and accessories
Fixtures:
System component used to join, change direction, change dimension or terminate cable tray lengths or cable ladder lengths.
All of these are available with a full range of fixtures and accessories
Covers :
Covers act as an additional safeguard, providing shelter from sunlight dirt accumulation and accidental contact. They also isolate cables from fires and radio frequency interference.
Available in solid top or louvered top
Construction Accessories:
Other types of cable trays and fixtures can be supplied to meet specific requirements.
Masar cable trays are available in these materials Aluminum, steel and stainless steel
The following items provide the typical dimensions used in the industry.
Other dimensions shall also be acceptable.
Dimensions are based on rationalized conversions.
Lengths of Straight Sections
Typical lengths, not including connectors, are :
(a) 3 m + 5 mm ( 10 ft + 16/3in )
(b) 3.66 m + 5mm (12 ft + 16/3 in.)
(c) 6 m + 9mm (20 ft + 16/5 in.)
Widths
(a) 150 mm (6 in.);
(b) 225 mm (9 in );
(c) 300 mm (12 in. );
(d) 450 mm (18 in. ) ;
(e) 600 mm (24 in. );
(f) 750 mm (30 in. );
(g) 900 mm (36 in. );
Note
The tolerance of the widths is within + 6 mm (4/1 in.) for inside dimensions.
Overall width shall not exceed the inside width by more than 100 mm (4in.).
Typical depths for sections are :
(a) 75 mm (3 in.);
(b) 100 mm (4 in.);
(c) 125 mm (5 in.);
(d) 150 mm (6 in.);
Note
The tolerance of the depths is within + 10mm (8/3). Outside dep ths shall not exceed inside depths by more than 30mm (114 – 1in.) For cable trays, typical depths are 50-30 mm (2-4/1-1 in.) for outside dimensions.
Thickness
It starts from 1mm up to 3 mm.
Flange type:
Masar Offers Different type of flanges:
- Snap on
- Angle flange
- Return Flange
Rung Type
- Perforated Rung
- Solid Rung
-

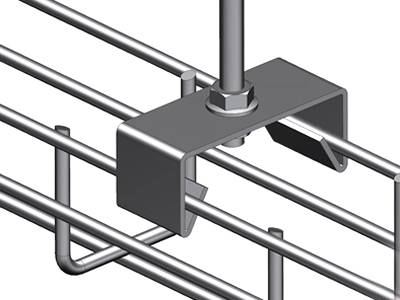

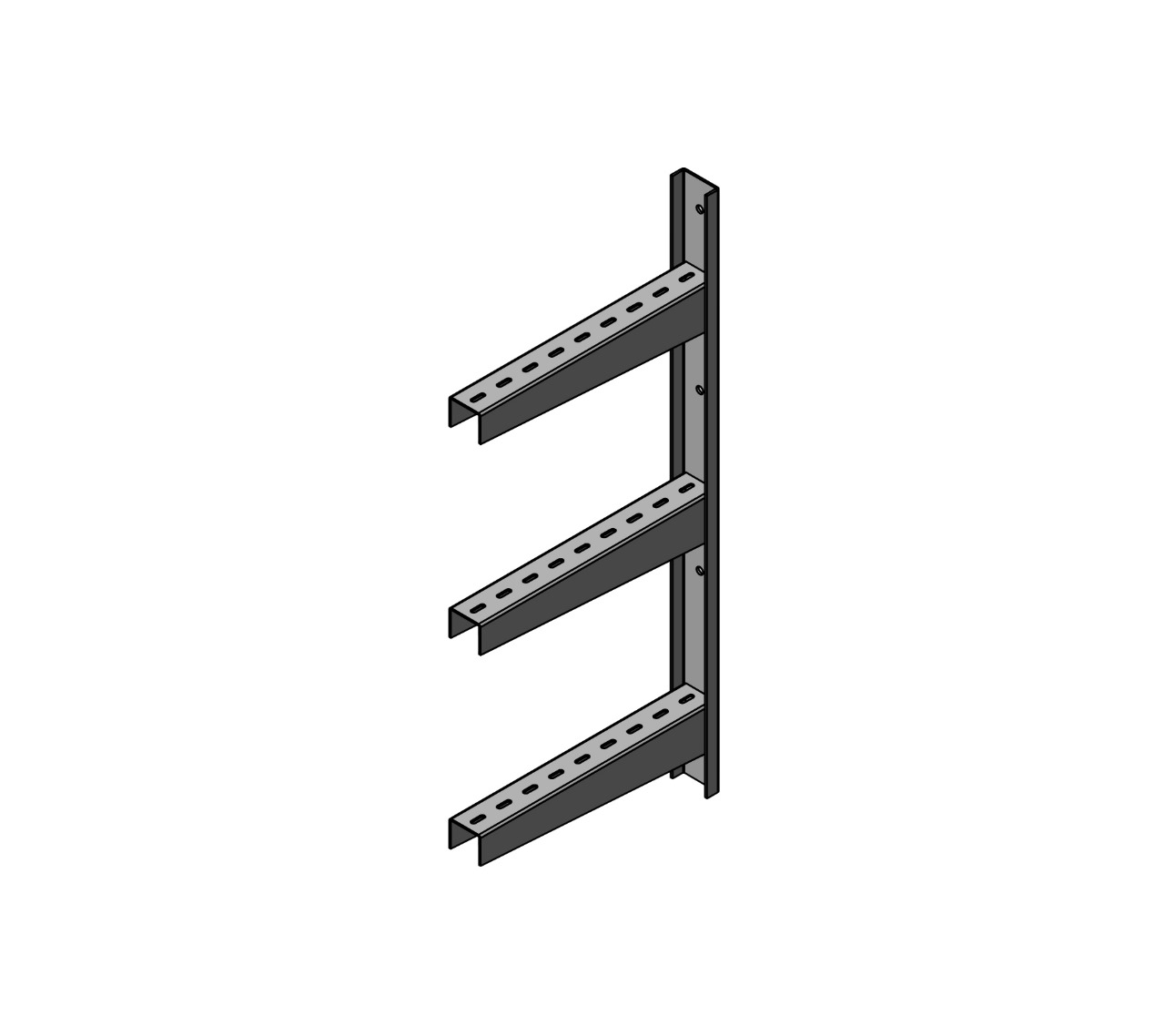

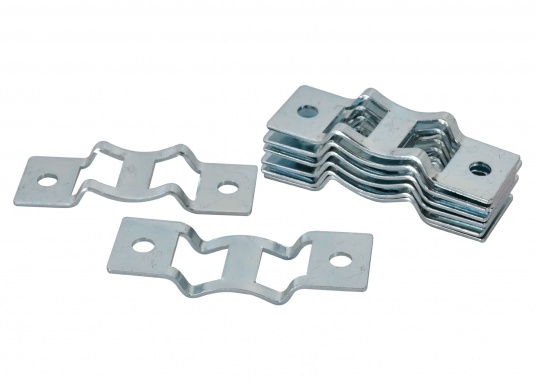

We manufacture wide range of support-bracket products such as enabling every type of installation. Such as ( Uni start - Brackets - Hanging Supports - Spring Nuts )
